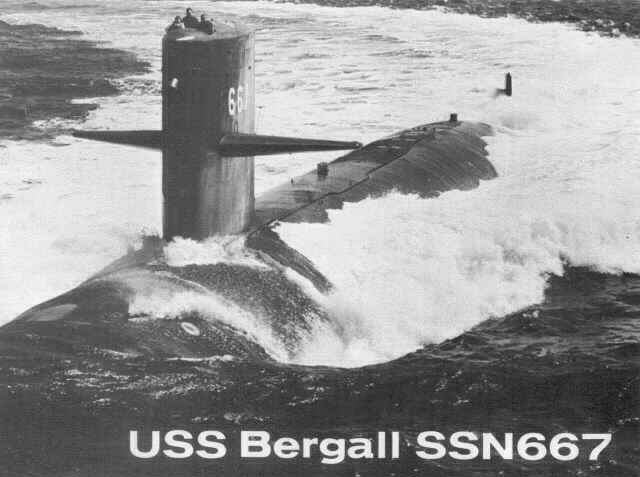

USS Bergall SSN 667
Specifications
| Class: | Sturgeon (Fast Attack) |
| Unit Identification Code: | 05149 |
| Award Date: | 03/09/1965 |
| Keel Laid: | 04/04/1966 |
| Builder: | Electric Boat / Groton, Conn. |
| Launch Date: | 02/17/1968 |
| Sponsored By: | Mrs. Ray C. Needham |
| Delivery Date: | 06/09/1969 |
| Commission Date: | 06/13/1969 |
| Overall Length: | 292 ft. |
| Waterline Length: | 0 ft. |
| Extreme Beam: | 32 ft. |
| Waterline Beam: | 0 ft. |
| Maximum Navigational Draft: | 28.8 ft. |
| Draft Limit: | 0 ft. |
| Displacement: | 4,640 tons submerged |
| Speed: | Better than 20 knots |
| Power Plant: | One S5W nuclear reactor, two steam turbines, 15,000 shp, one shaft |
| Armament: | Harpoon; MK-14 and MK-48 Torpedoes, SUBROC, Tomahawk. MK-57 mines, MK-60 mines |
| Torpedo Tubes | 4each, 21" diameter, amidships aft of bow |
| Radar: | BPS-14/15 Surface Search |
| Sonar: | BQQ-5 multi-function bow mounted, BQS-6 and BQS-13 active, TB-16 or TB-23 Towed Array |
| EW Systems: | WLQ-4(V), WLR-4(V), WLR-9 |
| Dead Weight: | 294 tons |
| Test Depth: | 1300' Test depth, 1900' Crush Depth |
| Hull Material: | Steel hull, steel superstructure. |
| Number of Propellers: | 1 |
| Accommodations: | Officers: 14, Enlisted: 95 |
| Decommission Date: | 06/06/1996 |
| Date status changed: | 09/29/1997 |
| Current Status: | Disposed of by submarine recycling |
| Age in years (At time of disposal): | 28.3 |
Between '90 and '94 she earned the Battle "E" award. She was also awarded the Navy Unit Commendation and the Meritorious Unit Award for her actions. The second submarine to carry the Bergall name served her country and crew well. She spent most of her time in the cat and mouse game of the cold war and never let us down!
